Plenum With Center Spline

Multiple Colors Available

Cat6 550mhz PLENUM Rated Cable With Spline, ETL


...........Prices..............

        $259.99 ea

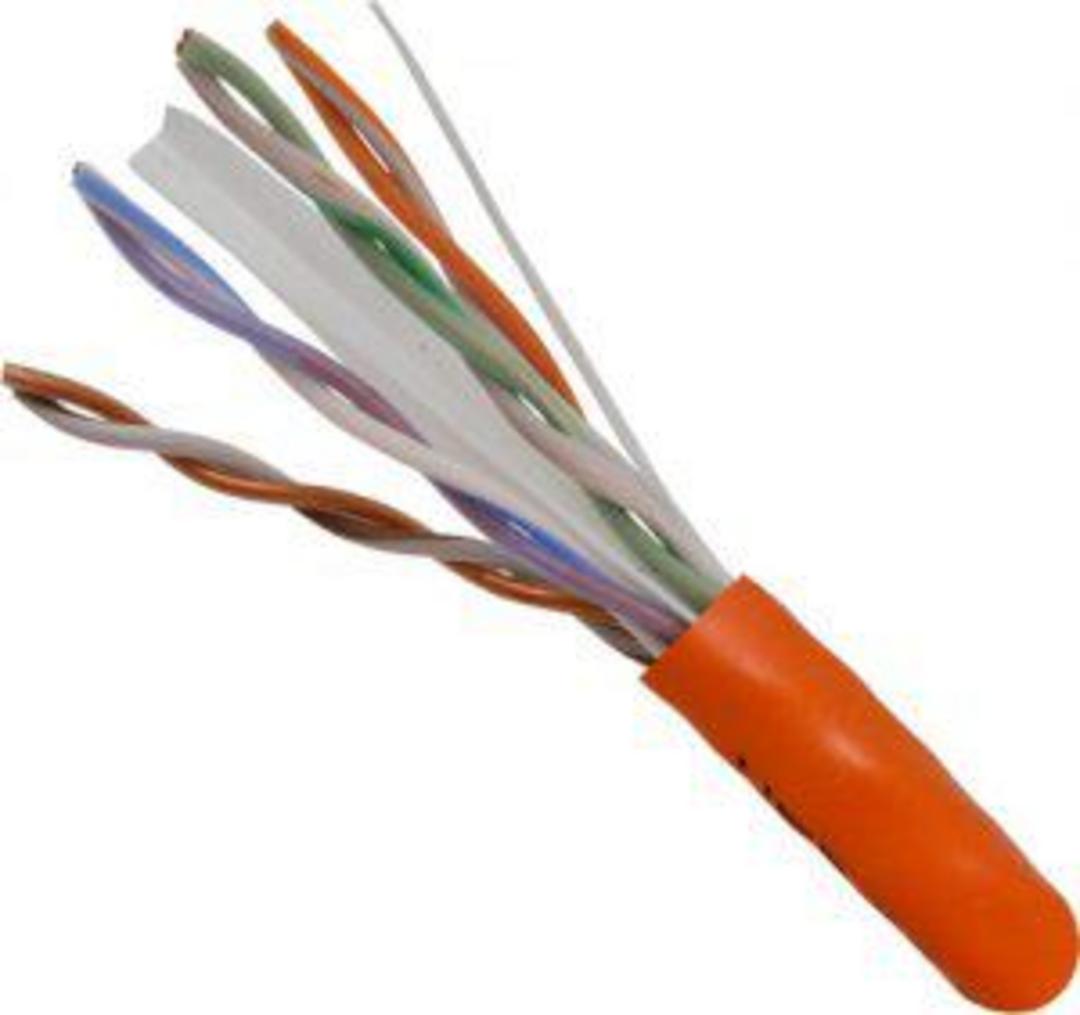

Sample color. Jacket color dependant upon color choosen in drop down menu.

SPECS:

Category 6 Plenum UTP 1000’ 8 Conductor, Bulk,
CMP Jacket, 23AWG Solid-Bare Copper, Pull Box
( ETL)

Primus Brand


Applications
• 10/100/1000Base-T
• 100Base-VG
• 155 Mbps and 622-Mpbs ATM
• Other high-performance applications
▫ Backbone
▫ Floor-to-floor backbone
▫ Horizontal cabling to desktop
Compliance
• ISO/IEC 11801
• TIA/EIA-568-C.2 Category 6 or greater
• ANSI/ICEA S-90-661 (Category 6) or greater
• NEMA WC63.1 (Category 6) or greater
• CMP Plenum Rated
• ETL Verified/Listed
• RoHS Compliance for the Requirement of European
 Union Issued Directive 2002/95/EC
Physical Characteristics
• Conductor Size: 23AWG
• Conductor Material: Solid Bare Copper
• Insulation Material: Foam-FEP
• Insulation Diameter: 1.017mm
• Number of Conductors: 8 Conductors
• Number of Pairs: 4 Pairs
• Outer Shield Material: N/A
• Outer Jacket Material: Flame Retardant PVC
• Outer Jacket Diameter: 5.9mm
• Outer Jacket Rip Cord: Yes

Cable Features
• Tested to 550MHz.
• Meets or exceeds CAT6 T568C.2 standards.
• Easy to use pull box with bigger payout.
• Cable is marked in descending order so you always know how
 much cable is in the box.
• Extra headroom provides room for growth.
• Low attenuation and power-sum crosstalk.


#C6UP-XXXX
