Specs:

• Termination: 110-type; Size: 4U

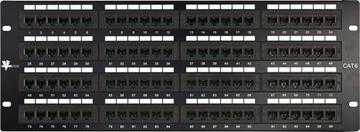

• Space saving, high-density 4U (96 Port), 19-inch panel design
• Flexible design (12&24 ports for 1U; 48 ports for 2U; 96 ports for 4U)
• Made of sturdy, rolled-edge, anodized aluminum
• Fully enclosed design for protection of printed circuitry during termination.
• Color-coded for T568A and T568B wiring schemes.
• Vertical Cable CAT5E &.6 panels are designed for maximum strength and are compatible with standard 110 or Krone Installation tools.
• Our panels fit and install in standard 19 inch cabinets.
• High-density 1U/2U/4U, 19, RMS (rack mount standard) design.
• Meets EIA-310-D specifications.
• Constructed from UL94-V-0 high-impact, fire-retardant ABS or PC material.
• Pair punch sequence enables a pair twist within 1/2, of termination.
• Beryllium copper contacts: 50,µ gold-plated pins over100,µ nickel layer.
• Insertion life cycle: 750 cycles (minimum) / I.D.C. 250 cycles (minimum).
• Operating temperature: -40ºC to +68ºC
• FCC Part 68
• 4xEIA Unit 19(W)x6(H)x1.1/4(D)
• UL Listed, RoHS Compliant
• Made in China
• P/N 042-379/96
• Old P/N C6-96PP
